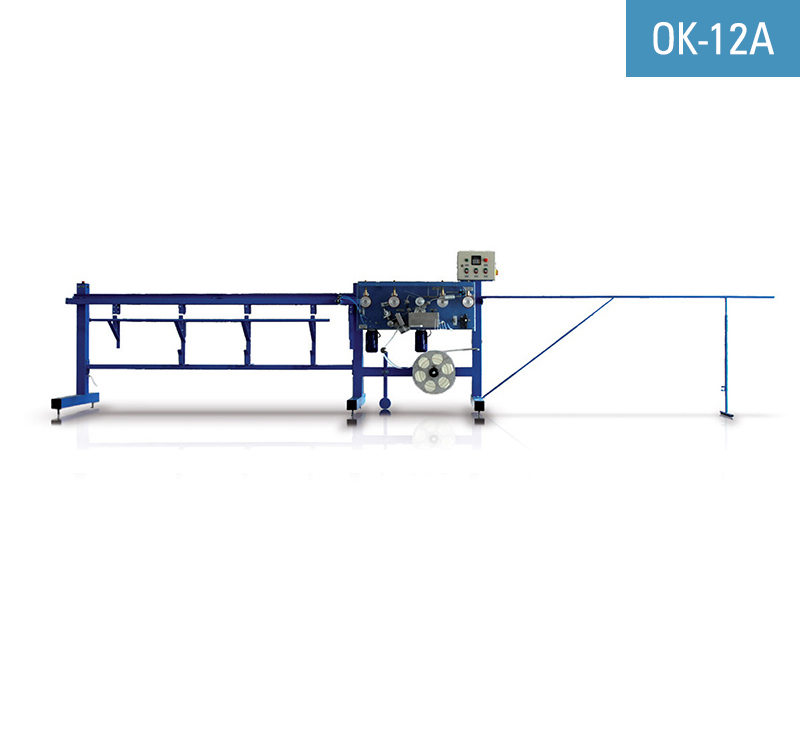

Machine adhering fiberglass mesh to corner beads, model OK-12A

The machine gluing fiberglass mesh to angle beads is used for adhering fiberglass mesh to PVC, aluminum or stainless steel corner beads with the use of hot melt adhesive. Machine used for manufacturing of corner beads with fiberglass mesh can work in semi-automatic mode, as well as in automatic mode (with with the automatic corner beads feeder PN-200).

Key features of machine used for manufacturing of corner beads with fiberglass mesh:

  • System of control of mesh stress and automatic adjustment of feed rate, which stabilizes production process and significantly improves quality of end-product



Main elements of the machine sticking fiberglass mesh to corner beads:

  • Unitronics PLC controller
  • Control sensor of mesh placement
  • Reservoir of hot-melt glue with isolation protecting an operator from heat injuries



Level of automation of the machine adhering fiberglass mesh to corner beads:

The machine adhering fiberglass mesh to corner beads can work in:

  • Semi-automatic mode: all operations except for feeding of corner beads are done automatically. In this setting the machine can be operated by one or two operators.
  • Automatic mode: with the automatic corner beads feeder PN-200. In this setting both machines can be operated by one operator.
